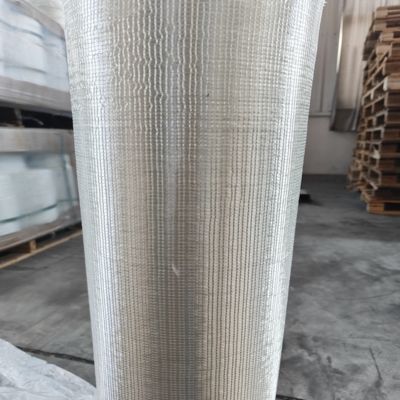

0 Degree Unidirectional Fiberglass Fabric 1200gsm Width 1300mm Excellent Wet Out Of Resin And Strong Break Strengthin for FRP Canoe
| Place of Origin | CHINA |
|---|---|
| 인증 | ISO 9000 |
| Model Number | EL1200g/m2-(0)-1300mm |
| Minimum Order Quantity | 500kgs |
| 가격 | negotiatable |
| Packaging Details | It is wound onto a paper tube of ID 76mm, wrapped up with plastic film and packed in woven bag. 48 rolls packed in one pallet, and a 20' container can hold 20 pallets |
| Delivery Time | 8 DAYS |
| Payment Terms | T/T, L/C |
| Supply Ability | 40MT A WEEK |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Non-metallic product | glass roving 2400 tex | Color | White |
|---|---|---|---|
| Yarn type | E glass | Width | 1300mm |
| Texture | 0° degree | Direction | Warp |
| Usage | Cover, high strength sheet, construction |
제품 설명
0 Degree Unidirectional Fiberglass Fabric 1200gsm Width 1300mm Excellent Wet Out Of Resin And Strong Break Strengthin for FRP Canoe
Fiberglass unidirectional fabric is the main arrangements of the roving 90º (transverse) or 0º (longitudinal), and stitched with a coil structure. It can be used to stitch unidirectional layer yarn with chopped strand mat, polyester veil, fiberglass surface tissue, carbon felt etc. into various types of composites fabric to obtain specific performances.
Features:
● No binder content, good wet out of resin
● Provide mechanical strength of a single direction
● Fiber straight arrangement, max usage of fiber strength
● Interspaces between the fibers are small, effectively improve the impact resistance of products
Application:
● Compatible with reinforced unsaturated polyester resin, vinlyester resin, epoxy resin, phenolic resin and polyurethane resin etc.
● Forming process includes winding, pultrusion, RTM, hand lay-up,vacuum infusion molding and RTM etc.
● The typical end-use applications are pipe, storage tank, pultruded profile, FRP boat hull and wind power blade etc.
Specifications:
|
Product NO. |
Overall Weight (g/m2) |
0°Roving (g/m2) |
90°Roving (g/m2) |
Chopped Roving (g/m2) |
Polyester Felt(g/m2) |
Width (mm) |
| ET 227 | 227 | / | 227 | / | / | 150 - 2600 |
| ET 350 | 350 | / | 350 | / | / | 150 - 2600 |
| ET 430 | 430 | / | 430 | / | / | 150 - 2600 |
| ET 550 | 550 | / | 550 | / | / | 150 - 2600 |
| ETP 400 | 400 | / | 360 | / | 40 | 150 - 2600 |
| ETM 450 | 450 | / | 230 | 220 | / | 150 - 2600 |
| ETM 650 | 650 | / | 430 | 220 | / | 150 - 2600 |
| ETM 900 | 900 | / | 680 | 220 | / | 150 - 2600 |
| ETMP 500 | 500 | / | 240 | 220 | 40 | 150 - 2600 |
| EL 400 | 400 | 336 | 64 | / | / | 150 - 2600 |
| EL 800 | 800 | 672 | 128 | / | / | 150 - 2600 |
| ELM 550 | 550 | 336 | / | 224 | / | 150 - 2600 |
| ELM 900 | 900 | 672 | / | 228 | / | 150 - 2600 |
| ELMP 600 | 600 | 336 | / | 224 | 40 | 150 - 2600 |
