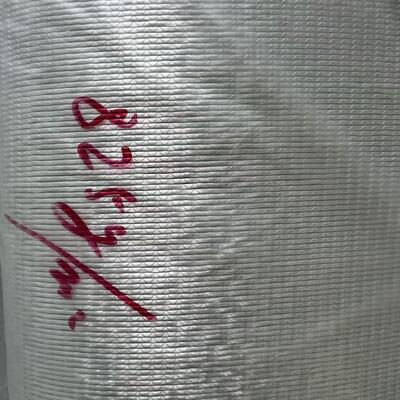

825g unit weight of Biaxial composite glass fiber mat fixed with setting powder, molded FRP products for new energy vehicle battery protection
| 원래 장소 | 중국 |
|---|---|
| 인증 | ISO 9000 |
| 모델 번호 | ELTM825-1270 |
| 최소 주문 수량 | 500kg |
| 가격 | negotiatable |
| 포장 세부 사항 | 롤은 플라스틱 박막으로 싸여있고 그리고 나서 포대에서 싸여집니다. 보통 9는 팔레트를 회전시킵니다,와 20' 컨테이너에서 10개 팔레트. 팔레트 패키지 없이 면, 컨테이너는 약 1 |
| 배달 시간 | 7일 |
| 지불 조건 | 전신환, 신용장 |
| 공급 능력 | 주당 20MT |
제품 상세 정보
| 재료 | E 글래스 직접적 조방 | 색상 | 하얀색 |
|---|---|---|---|
| 조직 | 90° 및 0°조합 | 너비 | 1270mm |
| 수지 | 불포화 수지와 다른 타입 | 애플리케이션 | 신에너지 자동차용 배터리 박스 |
| 무게 | 825G |
제품 설명
825g unit weight of Biaxial composite glass fiber mat fixed with setting powder, molded FRP products for new energy vehicle battery protection
Introduction:
Fiberglass biaxial fabric is a cloth in which the roving is arranged in a two-way direction at 90º (transverse) and 0º (longitudinal), and then stitched with a coil structure. It can be stitched two-way layer yarn with chopped strand mat, polyester surface felt, fiberglass surface felt, carbon fiber surface felt, etc., processed into various types of composites fabric to obtain specific performance.
Specifications:
| Product NO. |
Overall Weight (g/m2) |
0°Roving (g/m2) |
90°Roving (g/m2) |
Chopped Roving (g/m2) |
Polyester Felt (g/m2) |
Width (mm) |
| ELT 450 | 450 | 250 | 200 | / | / | 150 - 2600 |
| ELT 600 | 600 | 336 | 264 | / | / | 150 - 2600 |
| ELT 800 | 800 | 420 | 380 | / | / | 150 - 2600 |
| ELTP 500 | 500 | 250 | 210 | / | 40 | 150 - 2600 |
| ELTM 600 | 600 | 250 | 200 | 150 | / | 150 - 2600 |
| ELTM 900 | 900 | 336 | 364 | 200 | / | 150 - 2600 |
| ELTM 1050 | 1050 | 336 | 414 | 300 | / | 150 - 2600 |
| ELTM 1200 | 1200 | 420 | 430 | 350 | / | 150 - 2600 |
| ELTMP 640 | 640 | 250 | 200 | 150 | 40 | 150 - 2600 |
Features:
● No binder content, good wet out of resin
● Provide mechanical strength of the product i multi direction
● Fiber straight arrangemet, max. usage of fiber strength
● Interspaces between the fibers are small, effectively improve the impact resistance of products
Application:
● Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.
● Forming process includes vacuum infusion molding, pultrusion, hand lay-up, RTM etc.
● The typical end-use applications are FRP boat hull, wind power blade, sports equipment, pultruded profile and auto body etc.
